ホーム /製品/軽量レンガの機械/Building material shops business ideas with small investment intelock brick machine interlocking stabilized block machine

Building material shops business ideas with small investment intelock brick machine interlocking stabilized block machine

1 Set
MOQ
$19,000.00(>=1 Sets)
価格
Building material shops business ideas with small investment intelock brick machine interlocking stabilized block machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , block factory
Showroom Location: Viet Nam, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Thailand, UAE
Condition: New
Type: Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, solid brick making machine
Brick Raw Material: CONCRETE
Processing: Brick Production Line,brick making machine
Method: hydraulic and pressure
Automatic: Yes
Production Capacity (Pieces/8 hours): 7680-22400pcs per day
Voltage: 380V/220V/440V
Dimension(L*W*H): 5900*2200*2400mm
Warranty: 1 Year
Key Selling Points: easy operating,sample brick making machine
Brick size: 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, customizetion
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty of core components: 3 years
Core Components: PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox, mold
Weight (KG): 5600 kg
Raw material: Crushed Stone,fly ash,concete
Block Type: Hollow ,Paver ,Solid Interlock Blocks
Product Name: intelock brick machine
Model: QT4 brick making machine
Pallet size: 900*550mm
Color: Customerized
Advantage: Operating Easily
Worker: 3-4 Workers
Machine Type: simple Brick Block Making Machine
Vibration frequency: 2800-4500 Rolls/minute
基本情報
Model Number: QT4 brick making machine
お支払配送条件
Packaging Details: Standard seaworthy packing or according to the client's needing of block making machine/interlocking brick production line
Supply Ability: 2000 Set/Sets per Year
製品の説明
Machine Brief Introduction
business ideas with small investment intelock brick machine interlocking stabilized block machine

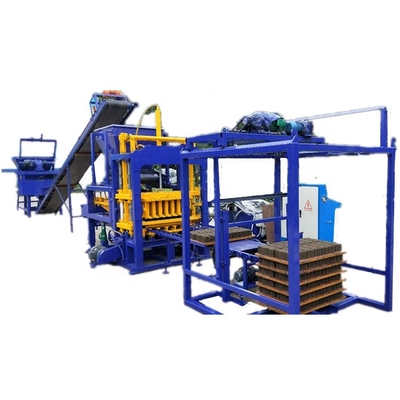

QT4 block making machine/interlocking brick production line is full automatic and sample production line ,it can make all types of hollow blocks, solid blocks, pavers, curbstones and so on.particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material .so the products have high density .Adopting synchronization vibraion insures the products making average .the frequency can change according to different tachnics.low frequency in feeding,high frequency vibration makes the different material to have a optimal vibration way.
Dimension
5900*2200*2400mm
Power
21.75kw
pallet
900*550*30mm
production line
QT4 block making machine/interlocking brick production line
cycle time
15-20S
working  way
 PLC control

QT4 block making machine/interlocking brick production line---mixer

QT4 block making machine/interlocking brick production line---conveyor

QT4 block making machine/interlocking brick production line---control box.


Productivity
item
specification size
quantity per mold
molding cycle
per day (8h)
hollow block
390*190*190mm
4pcs
15-20s
5760-7680pcs
solid brick
240*115*53mm
24pcs
15-17s
40656-46080pcs
color block
200*100*60mm
4pcs
15-20S
17600-22400pcs
Related Products
Terrazzo tile machine
EPS light weight wall panel machine
QT5-15 brick making machine
Our service
Our Services.
--Consulting & Planning
---Designing & Manufacturing
---Technology Instructing
---Installation Guiding
---Training&Commissioning
---After-Sales Services Providing
Why Choose Us
1.Won many international awards and recognition due to our performance. 2.All products and machinery are produced as per international standards and duly certified by international agencies and test houses. 3.We are possibly only company which is manufacturing everything in House and not an assembly house. 4.We have our own Testing and Research lab where we keep doing testes to arrive on the best solutions for the problems in products and processes. 5.We provide 24x7 service to our International clients. 6.More than 200 plants working domestic market and world over made by us of different products. 7.In house final product production to study day to day problems of the clients and solving them. 8.Provide full technical support to clients in terms of formulations and production. 9.International warranty for the plants supplied by us. 10.In house or in the spot training of the local staff by our trained engineers at clients cost off course. We are confident that you will surely be happy to join our family of HONGFA and make use of this opportunity
Our Company
Company Profile.
GUANGXI HONGFA HEAVY MACHINERY CO.,LTD is a leading name in research,design,develop,manufacture of environmental friendly building materials production line machines from the early 1990s. Main products: Light Weight Cement EPS Wall Panel Production Line Machine, Autoclave Aerated Concrete (AAC)Block Production Line, Concrete Batching Plant, Fully Automatic Concrete Block/Brick Production Line Machine, Concrete Tile Making Machine, Concrete Pipe Making Machine, Non-Vibration Hydraulic Brick Making Machine,Artificial Quartz Stone Production Line Machine,etc. Our strength: has four production factories and a large Research and Development center. The plant area is 440,000 ㎡ employing 1500 including 40 engineers and 150 assistant engineers. The annual sale is approx. 100 Million USD covering more than 132 countries such as the United States, Russia, Australia, Brazil, India, Vietnam, Thailand, Sudan, North Korea, Angola, Bangladesh,South Africa,Saudi Arabia,Lebanon,Qatar, etc.
Hongfa machinery Honors and Recognition.
-One of Top Ten Influential Brands in China for Brick & Tile Industry -AAA Grade Credit Enterprise. -Star Enterprise with China Patent -China National Enterprise-abiding Contract & Good Faith -Quality and Credibility of the Dual-protection Demonstration Unit -Advance Quality Management Unit -High and New Technology Enterprise -Famous Trademark of China -Consumer Satisfaction Unit -One of Top Ten Good Faith Units -Advanced Exporter in China
Customer Photos
Product packaging&delivery

RFQ.

1. Can this machine make my brick or other size block? We would design and do the mould according to customer's Drawing. 2.Are your company is the manufacture or trading company? We are Direct factory,not agent or trading company,and the quality and after-sale services is guaranteed. 3.How can I trust the machines quality? Our company got ISO9001-2000 and CE identifications, and we making machines for more than 30 years,with full experience,updating technical idea and application.Furthermore our machines have been exported to more than 96 countries and always have a good reputation from our oversea customers.We will do fully test our products before shipment, make sure every equipment work well when they are delivered. 4.When do you delivery the goods? Normally 30 days after receipt of deposit and moulds confirmation from Buyer. 5.What about the payment terms? 30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable). 6.Does the price include the mold? Yes,the above price includes one set mold. 7. Would you mind provide the video? The video is available to send to you, please contact me. 8.How about the commissioning of the machine and training to workers? Yes, after finish the installation of the block production line, our engineer will do the testing and commissioning, and make the most suitable ratio of the materials to make the blocks, and train the workers how to operate and maintain the machines.
