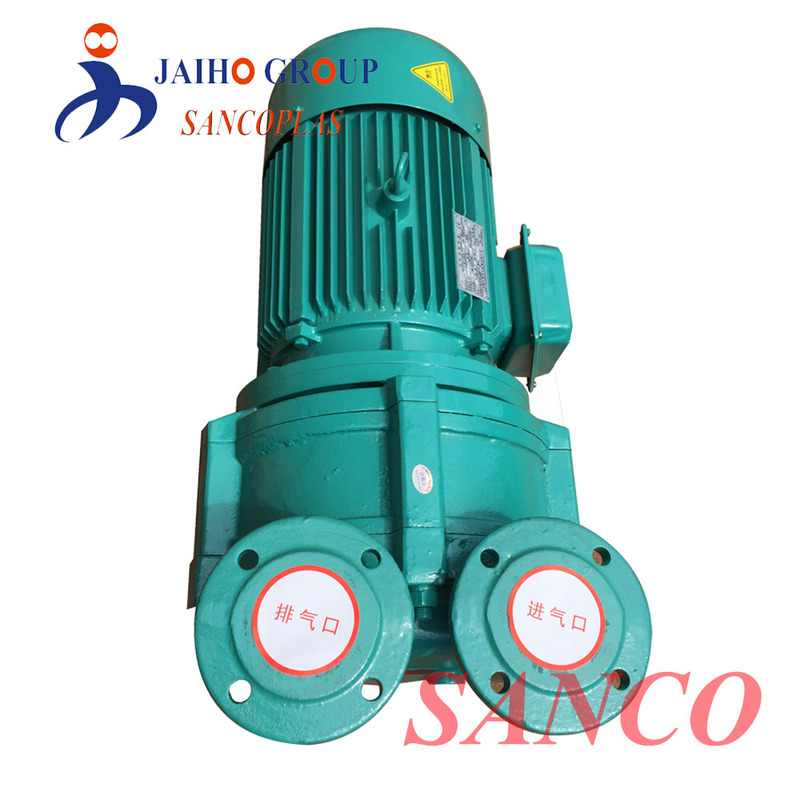

Sales SZ Hot Water Regulating Liquid Ring Vacuum Pump

1 Set
MOQ
Sales SZ Hot Water Regulating Liquid Ring Vacuum Pump
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Condition: New
Material: Stainless Steel
Spare Parts Type: Extruder machine
Warranty: 1 Year
Key Selling Points: Competitive Price
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Retail
Showroom Location: Viet Nam
After-sales Service Provided: Online support, Field installation, commissioning and training
Local Service Location: Germany, Viet Nam, Peru, Russia, Thailand, Ukraine
After Warranty Service: Video technical support, Online support
Product name: Vacuum Pump
Structure: Single-stage Pump
Pressure: Low Pressure
Theory: Vacuum Pump
Power: 2.2KW,5.5KW, Pneumatic
Use: Vacuum pump for extruder machine
Usage: Air Pump
Fuel: Air
Application: Metering
Standard or Nonstandard: Standard
基本情報
お支払配送条件
Packaging Details: SZ water- ring vacuum pump 1.Solid plywood box packing 2.Standard export packing
Supply Ability: 1000 Set/Sets per Month
製品の説明
Why Choose Us
1.SANCO only supply competitive advantage products!
2.Full refund or Free replacement in case of bad quality or late delivery!
3.SANCO are focus on service for solution, not only supply screw barrel parts!
4.Quality is our culture, with us your money in safe your business in safe!!!
5.SANCO is the 2019 year the most welcomed Alibaba gold supplier!!!
6.SANCO is vertified gold supplier by TUV&ALIBABA!
Product Description
Product Name
SZ water- ring vacuum pump
Material
Stainless steel
Color
Blue, black or customized
Power
0.75KW/1.5KW/2.2KW/3.0KW/4.0KW/5.5KW/7.5KW/11KW
Voltage
380V/50HZ,380V/30HZ,415V/50HZ or customized
Brand
SANCO
Certificate
ISO9001 CE
SZ water- ring vacuum pump
Principle
As the impeller vanes pass the suction port air is drawn in and trapped between the water ring and the pimp shaft. This 'slug' of air is carried around and deliverd to the discharge port, hence this pump is a positive displacement type. Due to the casing shape the water is made to flow from and towards the rotor center during each revolution. The water motion is utilised to act as suction and discharge for the air through appropriate sets of ports.
High Quality Water Liquid Ring circulation pump
1) Vacuum degree 97%, can catch double stage pump.
2) Latest streamlined impeller design in China, energy saving 30~50% more.
3) Oil free design to protect the envirinment.
4) Mainly parts made of copper alloy steel, stainless steel, best corrosion resistantance.
5) Mechanical seal, more reliability.
6) Smart, light, easy assemble.
Liquid Ring Vacuum Pump Seal Ring

Vacuum pump seal ring is one of the core parts of vacumm pump and can be replace if it is broken. There have two type material of the seal ring, one is silicon dioxide and anonther one is alloy steel which is higher quality and longer service life.
Liquid Ring Vacuum Pump System (vacuum pump+pump cylinder)
The complete vacuum pump system is include the vacuum pump and vacuum cylinder, there have a fliter inside the cylinder to suck dust , also it can replace and clean easily while vacuum pump is still working. So it will extend the vacuum pump service life .
ApplIcation

1) Vacuum distillation and Drying in Chemical industry
2) Vacuum degassing or vacuum in plastic products industry
3) Vacuum drying in leather industry
4) Vacuum concentration in beverage industry
5) Vacuum degassing in paper industry
Apply for Plastic Extruder Machine
It's easy to make the material degradation, performance, reduce the internal and exterior quality of the products, at the same time the production of masterbatch in small pores, cuttings, affect the quality.The screw design make the material generally vent in the vacuum state, is advantageous to the expansion of gases and escape, thus ensuring the quality of the product.
There have two selection when you decide to buy a water liquid ring vacuum pump:

Liquid Ring Vacuum Pump


Only buy vacuum pump can reach it is effectiveness of work performance. And it is more competitive price than a complete system vacuum pump.

Liquid Ring Vacuum Pump System (vacuum pump+pump cylinder)

The advantage of complete system vacuum pump is that have longer service life , as there assemble one more vacuum cylinder and fliter to suck dust and can replace it more easily while vacuum pump is still working.
Detail Specification
Techinical Parameter for Water/Liquid Ring Vacuum Pump as below:
Model
Air Exhaust Speed(m3/h)
Ultimate Vacuum/Pa
Power /KW
Speed
the Volume of Water(m3/h)
Weight /KG
SZ-0.3
20
4000
0.75
2820
0.20
32
SZ-0.5
40
4000
1.5
2840
0.23
40
SZ-1
60
4000
2.2
2840
0.25
55
SZ-1.5
90
4000
3.0
2890
0.25
75
SZ-2
120
4000
4.0
2890
0.45
80
SZ-3A
180
4000
5.5
1440
0.40
110
SZ-4
270
4000
7.5
1440
0.50
145
SZ-6
360
4000
11
1460
1.20
200
product show
We have finished stock liquid ring vacuum pump of above standard model, delivery times 3 days max.Also we can customize the liquid ring vacuum pump according to customer requirements, such as different voltage, power and speed.
Product Details
Vacuum Pump Cylinder
Vacuum Pump Seal Ring
Vacuum Pump Impeller
Vacuum Pump Assembly
Vacuum Pump Body
Painting Workshop
Finished Liquid Ring Vacuum Pump Testing before Delivery :
Vacuum Pump Negative Pressure Value Testing

(negative pressure value in -0.08 ~ -0.1MPa)
Impeller Dynamic Balance Testing

(less vibration and less noisy, longer service life)
Vacuum Pump Performance Testing

(our each vacuum pump will be tested qualified before dispatch to customer.)
Our Company

Our new workshop 12000SQM, Totally have 5 engineers team, and 50 good experinced employee, registered capital 8 billion USD.

SANCO is one of the leading manufacturer for the extruder parts-Screw barrel& Gearbox& Vacuum pump since 2002 year.

Refund the money if you are not satified of the quality.
*100% quality guarantee.
*One-stop service for you.
*Factory competitive price.
*Fast delievery time with stocks.
Product packaging&shipping


SZ water- ring vacuum pump
1.Packing Details : Liquid ring vacuum pump packing in strong wooden box.
2.Delivery Details : 1-3 days after received deposite for liquid ring vacuum pump.
